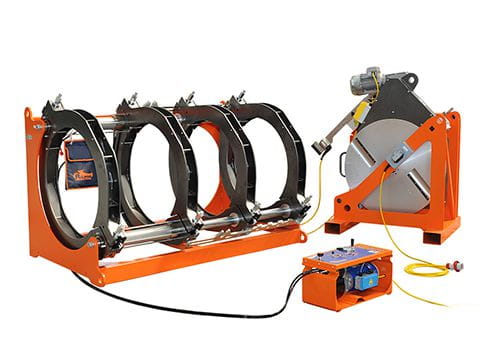

Delta 800 - 500-800mm Ritmo Poly Butt Welder

The Ritmo Delta 800 Poly Butt Welder has the ability with its anchor-able and movable clamps to weld poly fittings such as elbows, tees and stub flanges.

Features:

- Machine body with a steel bearing frame
- Self detaching device: assists with removing the heating plate during welding procedure
- Extractable heating plate with separate thermometer for reading the working temperature
- Extractable electric milling cutter with a safety micro switch and overload cut-out
- Electro-hydraulic gear case
- Digital electric connections box with the temperature controller
- Milling cutter/heating plate support

Technical Details:

Materials: HDPE/PB/PVDF
Working range: Ø 500-800mm
Power supply: 400V Three phase 50/60 Hz
Total absorbed power: 16500W
Working temperature: 180°-280°C
Pressure working range: 0-150 bar
Weight only body machines: 821kg
Dimensions: 2100x1350x1300 mm
