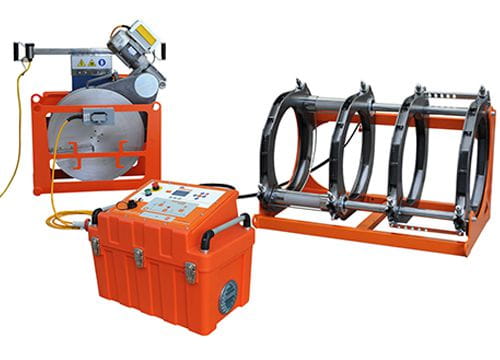

Delta 500 Easy Life - 200-500mm Ritmo Poly Butt Welder

Thanks to a special gearcase, the Ritmo Delta 500 Easy Life Poly Butt Welder is able to manage the welding process in a semi-automatic way. The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters. The Easy Life system also enables you to pre-set 50 customised welding cyles.
The Basic 500 Easy Life is able to weld fittings such as elbows, tees, Y-branches and stub flanges without any additional equipment, by simply fixing the clamps’ drag bar.
The Easy Life system can store up to 4000 welding cycles and combine them into a PDF file. This report can be transferred to a PC/laptop through a USB port. The Easy Life data logging system now also shows the time!

Features:

- Machine body with a steel bearing frame
- Clamps in steel
- Insert in steel with quick locking/unlocking system. No tools required
- Self detaching device: helps removing the heating plate during welding procedure
- Extractable heating plate with separate thermometer for reading the working temperature
- Extractable electric milling cutter with a safety micro switch and overload cut-out
- Milling cutter’s plastic control box is protected by a metal frame
- Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
- Electrohydraulic gear case
- Digital electric connections box with the high precision (± 1°C) “Digital Dragon” temperature controller
- Milling cutter/heating plate support

Technical Details:

Materials: HDPE-PP-PB-PVDF
Working range: Ø 200-500mm
Power supply: 230 VAC 50/60 Hz
Total absorbed power: 7950W
Memory: 4000 reports
Working temperature: 180°-280°C
Pressure working range: 0-150 bar
Weight only body machine: 230kg
Weight gearcase: 37kg
Dimension machine: 1265x790x780mm
Dimension gearcase: 585x384x463mm
