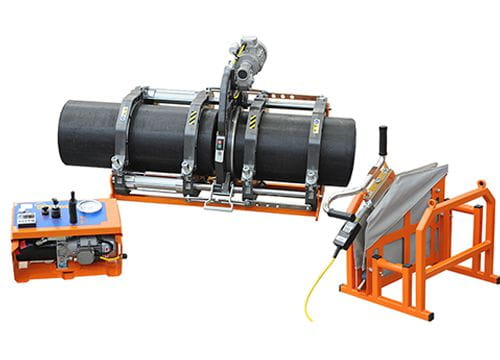

Basic 355 - 125-355mm Ritmo Poly Butt Welder

The Ritmo Basic 355 Poly Butt Welder is able to weld all poly fittings, such as stub flanges without any additional equipment by simply fixing the clamps’ drag bar.

Features:

- A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings

- An extractable heating plate with Digital Dragon™ high precision electronic thermo regulator

- An extractable milling cutter, with safety micro-switch

- An electrohydraulic gear case, with a clamp opening and closing lever

- A hydraulic hoses with non-drip quick couplings

- Rear-hinged clamp set for ease of use

Technical Details:

Materials: HDPE/PP/PB/PVDF

Working range: Ø 125- 355mm

Power supply: 110V; 230V 50/60 Hz

Total absorbed power: 5800 W

Working temperature: 180°-280°C

Pressure working range: 0-150 bar

Weight only body machines: 100 Kg

Dimension: 1077x510x715mm
