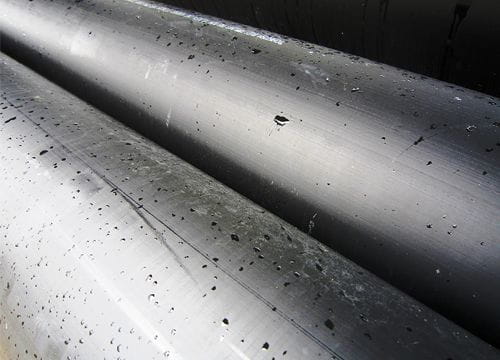

All Black Poly Pipe SDR17
Black SDR17 poly piping comes with a huge number of benefits. These benefits include resistance to corrosion, damage, impacts, and chemicals. Other factors favouring SDR17 HDPE pipes are; ease of installation, a lifetime well in excess of 50 years, and the ability to be used for pump suctions without the risk of sucking flat.
What does SDR17 mean? SDR stands for Size Dimension Ratio. So you divide the outside diameter of the HDPE piping (in mm) by the SDR, to give you the pipe wall thickness. For example, you could divide 200mm(OD) by 17(SDR 17), giving a wall thickness of 11.7mm. With HDPE piping material, SDR17 gives you a pressure rating of PN10, or 10 bar.
Diameter NominalLengthQuantity
RELATED PRODUCTS
Poly Pipe
A large range of poly pipe is stocked in Victoria and Melbourne in a range of sizes and ratings. Matrix Piping Systems distributes poly piping throughout Victoria and New South Wales. As a reliable family business in the supply of poly pipes, we are big on long standing business partnerships and customer service.
Poly Pipe in Lengths
Matrix Piping can offer poly pipe in 6 metre and 12 metre lengths. On larger projects and for HDPE pipes that are 110mm diameter and over, we can also offer lengths up to 20 metres long.
Poly Pipe in Coils
Matrix Piping offer coils in polyethylene pipe sizes from 20mm up to 110mm diameter. Coils are also available for diameters 125mm, 140mm and 160mm, however we recommend that clients perform a full risk analysis and provide their installers with suitable uncoiling machinery. Standard lengths of coils vary from size to size, however common lengths available are 50, 100, 150 and 200 metres.
